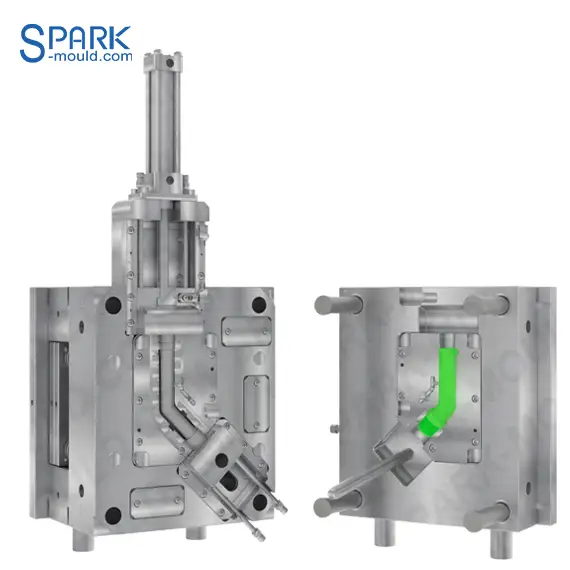

This is a very representative 45-degree joint mold. The mold consists of two sets of core pulling mechanisms in different directions. One is upward, and the slide is controlled by the cylinder to move. The other is 45 degrees diagonally, and the slide is controlled by the angle pin. Due to the large size of the product, we only made one cavity for cost considerations. The product is made of PP and one end of the connector is threaded. But since it is a male thread, we only need to set a thread insert on the mold to achieve it.

    oops...!

    no product data.

    Go to homepage

    Mold Core Pulling Mechanism

    The mold consists of two sets of core pulling mechanisms in different directions, one set is upward, and the slider is controlled to move by a hydraulic cylinder. The other set is a 45-degree inclined core pulling mechanism, and the slider is controlled to move and reset by an angle pin.

    Plastic 45 Degree Joint Mold design (4)
    Plastic 45 Degree Joint Mold design (6)
    Plastic 45 Degree Joint Mold design (3)

    Angle Pin & Slide

    The angle pin is a common structure in the mold structure and is generally placed on the fixed mold. The angle pin has a certain bevel angle and matches the movable mold slider. When the movable mold moves, the inclined surface of the angle pin contacts the inclined surface of the slider, and the tangential force generated thereby pushes the slider to move outward. The angle pin has many advantages such as high stability, simple operation and low maintenance cost.
