Plastic Standoff Mold - 16 Cavities Automatic Unscrewing Thread Mold

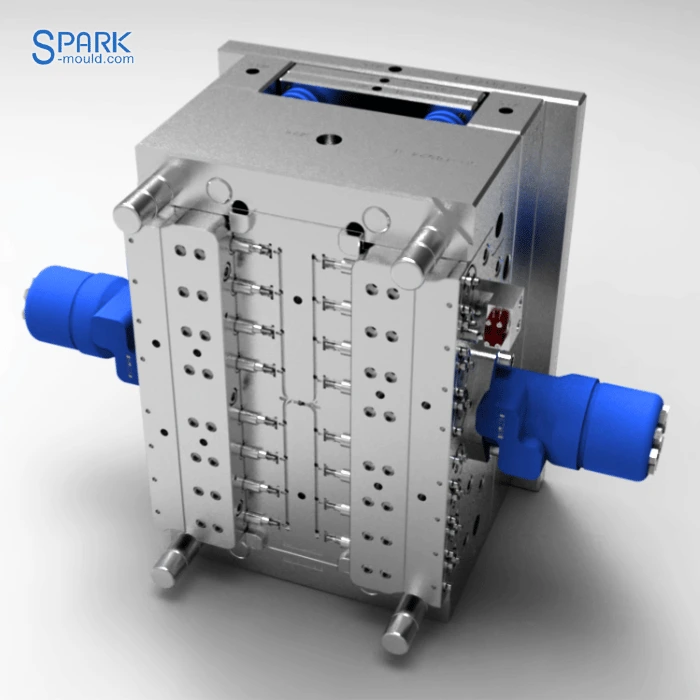

This is a set of 16-cavity Plastic Standoff mold. There are two sets of automatic unscrewing thread mechanisms in this set. Each mechanism controls 8 cavities. The driving force of the automatic unscrewing thread mechanism is provided by two hydraulic motors. The power is transmitted through the gear set. When the thread core rotates, it meshes with the thread sleeve. The thread core retreats and disengages from the product.

    oops...!

    no product data.

    Go to homepage

    Plastic Standoff Mold Structure

    This Plastic Standoff mold has 16 cavities in total. The highlight of its structure is the automatic unscrewing thread mechanism on both sides of the mold. The threaded core rotates backward and disengages from the product.

    Plastic Standoff Mold Structure (2).png
    Plastic Standoff Mold Structure (3).png
    Plastic Standoff Mold Structure (1).png

    Lock Nut Injection Mold Structure Dynamic Simulation

    The motion process of this Plastic Standoff mold is shown in the video. When the mold is opened, the hydraulic motor drives the gear set to rotate the thread core. The thread core rotates and moves backward to separate from the product.
