Worldwide Pvc Pipe Fitting Mold Price List

Product details of the pvc pipe fitting mold

Quick Overview

The colors of pvc pipe fitting mold is various. All the while we constantly work to find innovative and functional solutions for this product. With strong production strength, Spark Mould guarantees the bulk production of pvc pipe fitting mold as well as the high quality.

Product Introduction

Under the premise of ensuring the same price, the pvc pipe fitting mold that we develop and produce as a whole has been substantially improved in a scientific way, as shown in the following aspects.

Foldable Core Pulling Mechanism 1

The foldable core is a very representative mold slider mechanism, mainly for the internal thread or annular boss of the plastic part. We designed 9 exquisite parts to combine the foldable core. The contraction and expansion of the slider are achieved through the control of the oil cylinder.

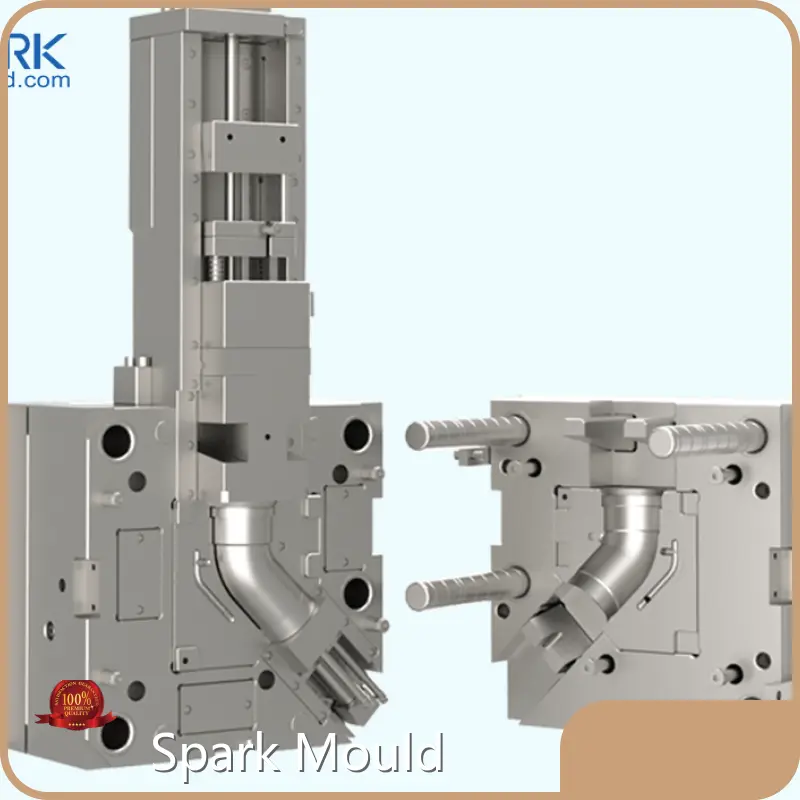

Foldable Core Pulling Mechanism 2

The core-pulling structure of this 45-degree elbow is cleverly designed, consisting of two precise arc blocks and two guide rails. The mechanism is controlled by the oil cylinder, allowing the arc block to move flexibly along the guide rails. The processing accuracy of the arc slider needs to be very high because the inside of the pipe fitting is smooth and curved.

Mold Trial Video

During the product ejection process, the slide at the O ring shrinks first. Then it is separated from the product along with the slide inside the elbow.

Company Information

Spark Mould Technology Co., Ltd. is a specialist manufacturer of pvc pipe fitting mold in China. We have been at the forefront of this industry since establishment. Spark Mould is performed well for its great quality pvc pipe fitting mold. Our goal is to become a first-class manufacturing enterprise of pvc pipe fitting mold. Check now!
We only produce high-quality products. Welcome customers to contact customer service staff for consultation!
