Mold Core Pulling Mechanism

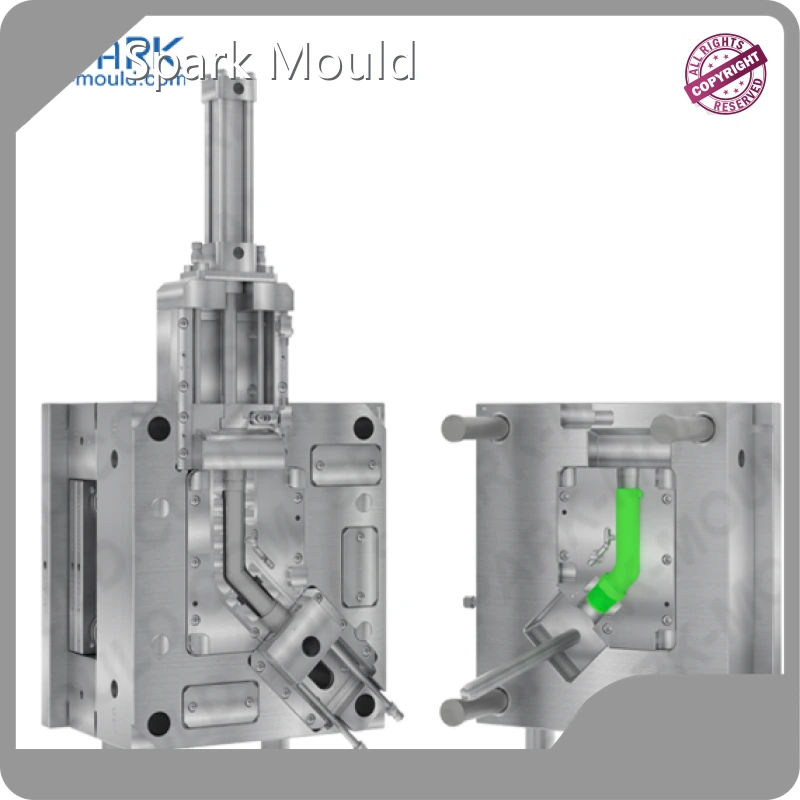

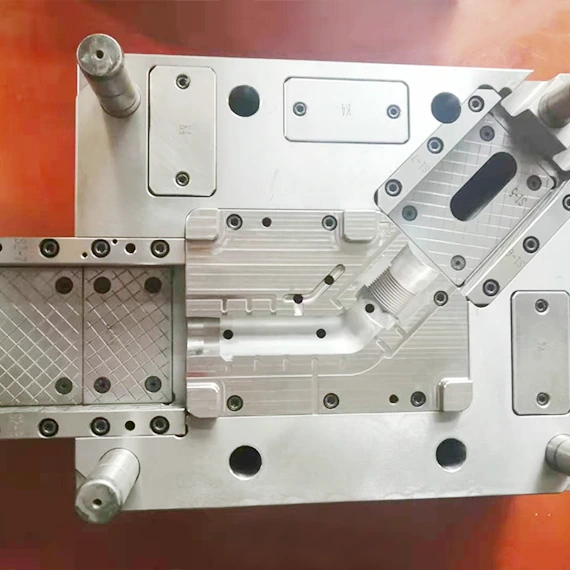

The mold consists of two sets of core pulling mechanisms in different directions, one set is upward, and the slider is controlled to move by a hydraulic cylinder. The other set is a 45-degree inclined core pulling mechanism, and the slider is controlled to move and reset by an angle pin.

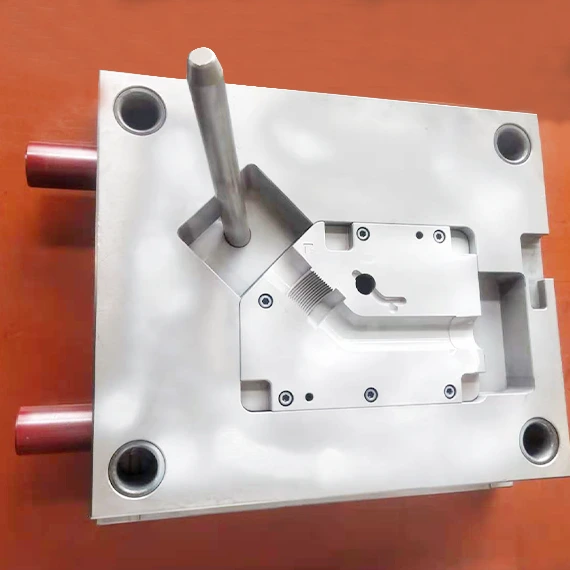

Angle Pin & Slide

The angle pin is a common structure in the mold structure and is generally placed on the fixed mold. The angle pin has a certain bevel angle and matches the movable mold slider. When the movable mold moves, the inclined surface of the angle pin contacts the inclined surface of the slider, and the tangential force generated thereby pushes the slider to move outward. The angle pin has many advantages such as high stability, simple operation and low maintenance cost.

Mold Trial Video

Company Advantages

· Every detail of Spark Mould fitting mould is delicately designed and carefully manufactured.

· Quality and reliability are the basic characteristics of the product.

· Under technical support, fitting mould is of good quality.

Company Features

· We are a famous brand which mainly produce high quality fitting mould.

· We have been challenged to fulfill different fitting mould requirements cross the world.

· To keep with our longstanding commitment to Green quality standards, we maintain the highest international quality standards in our products, production processes, customer service, and manpower.

Application of the Product

Spark Mould's fitting mould can play a role in various industries.

With many years of practical experience, Spark Mould is capable of providing comprehensive and efficient one-stop solutions.
