For Industry Pvc Elbow Mold by Spark Mould

Product details of the pvc elbow mold

Quick Detail

The quality and safety of all the materials used for Spark Mould pvc elbow mold are extremely important. Due to the strict quality control system adopted by our company, the quality of the products is guaranteed. The huge user base gives a huge impetus to this product.

Product Information

Our pvc elbow mold has the following differentiated advantages compared to similar products.

Wys mold slider assembly

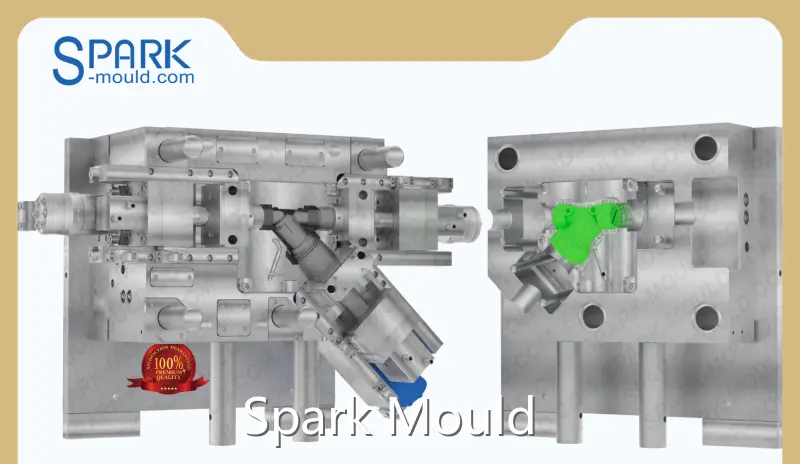

We designed 3 sets of slider assemblies in this wys mold. Each slider assembly has a hydraulic motor and a hydraulic cylinder. The hydraulic motor drives the unscrewing of the threaded slider, while the hydraulic cylinder drives the entire slider assembly to disengage and reset the product. In the figure below, we show the structure of this slider assembly.

Wys mold opening and closing action

When the mold is opened, the inclined guide column on the fixed mold drives the threaded slider seat to move back a certain distance. The hydraulic motor loosens the thread to make the threaded slider separate from the product. Then the hydraulic cylinder drives the entire slider assembly to separate from the product.

Mold Trial Video

Company Advantages

Spark Mould Technology Co., Ltd. is a company located in dong guan. We mainly supply high-quality Plastic Pipe Fittings Mold. Spark Mould always sticks to our tenet of "quality comes first" by focusing on the quality control, service improvement, and fast response. Spark Mould pays attention to the development of knowledge and skills of all employees and establishes high-quality and professional teams. Spark Mould insists on providing customers with reasonable solutions according to their actual needs.
Our products are of excellent quality and favorable price, please feel free to contact us for quotation!
