Tee pipe fitting injection mold - Spark Mould

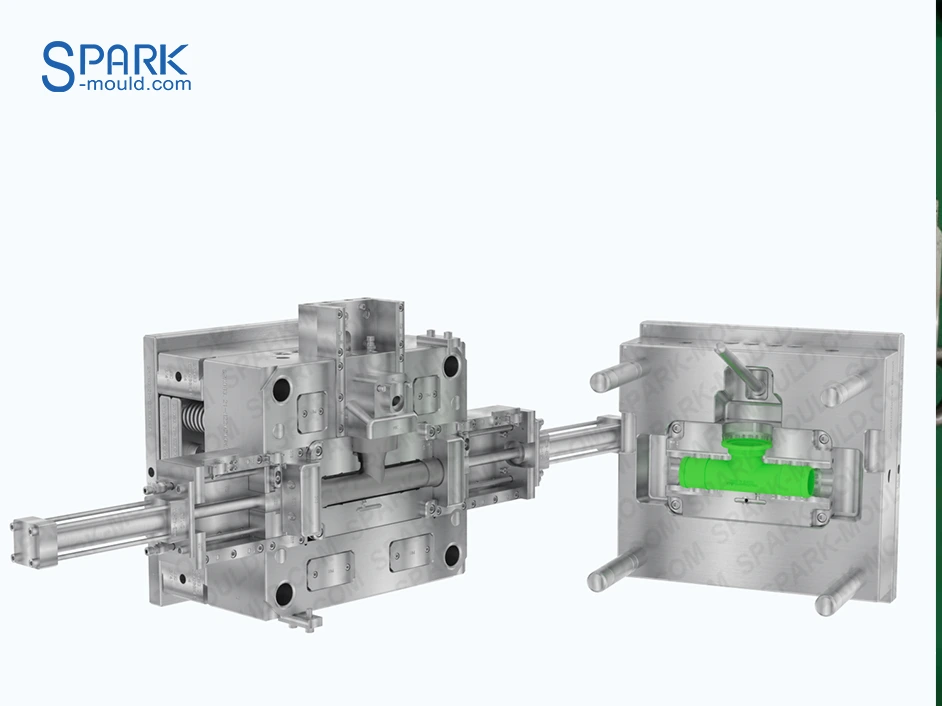

The tee pipe fitting injection mold is a kind of injection molding tool specially used for producing tee pipe fittings. The tee pipe fittings are indispensable connectors in the pipeline system. This mold consists of three sets of slides controlled by two hydraulic cylinders and a angle pin. Due to the large size of the product, we only designed one cavity.

    oops...!

    no product data.

    Go to homepage

    Side core pulling mechanism

    Since there is no other special structure inside the product, the mold only needs to design a simple core-pulling mechanism. The lateral core pulling mechanism is a mold opening mechanism that is inconsistent with the mold opening direction. It is used to pull out the lateral core that hinders the eject of the plastic part when the injection mold is opened, so that the plastic part can be ejection smoothly.

    Tee pipe fitting injection mold design (4)
    Tee pipe fitting injection mold design (3)
    Tee pipe fitting injection mold design (2)

    Mold Design Display

    Tee pipe fitting injection mold design (6)
    Tee pipe fitting injection mold design (1)
    Tee pipe fitting injection mold design (5)

    Mold Trial Video

    The hydraulic drive mechanism has smooth movement, strong pulling force and long core pulling distance, but the mold structure is complex and the cost is high. It is suitable for large injection molds or occasions that require long-distance core pulling.
