Customized Fitting Mould for Sale

Product details of the fitting mould

Product Introduction

Spark Mould fitting mould is manufactured with the support of a team of experts. The quality team tests the product against varied parameters to ensure the high quality. The high performance of fitting mould effectively enhance the popularity and reputation of Spark Mould Technology Co., Ltd..

Injection Mold Structure

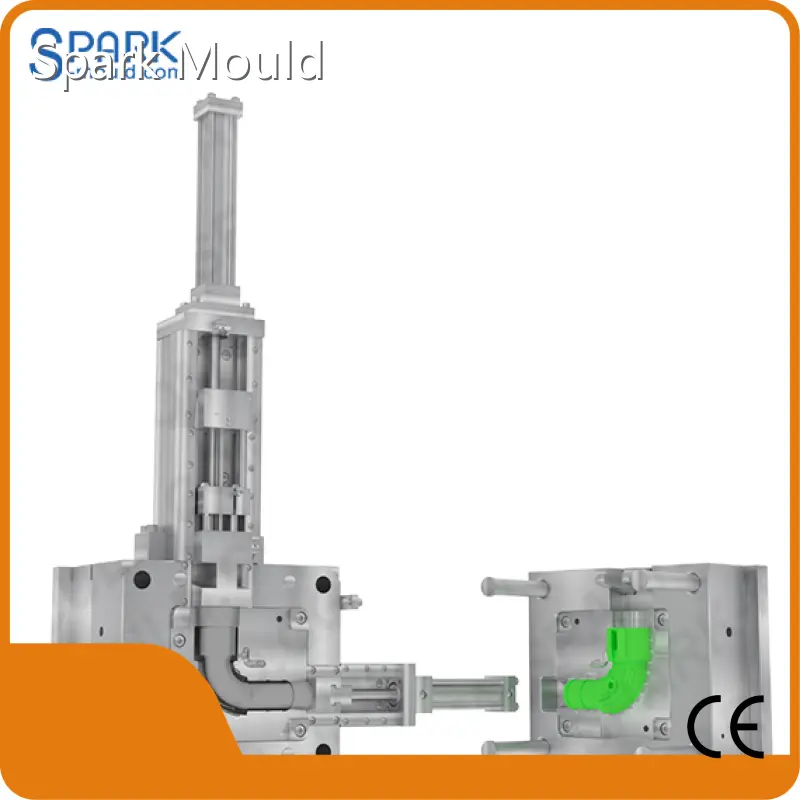

The core of this 90-degree quick connector injection mold is the foldable core mechanism. Its processing and debugging are somewhat difficult. The basic structure of the foldable core is shown in the figure below. The whole mold has two sets of core pulling mechanisms, which are controlled by two hydraulic cylinders respectively.

Hydraulic side core pulling mechanism

Using pressure oil as the power, a special core pulling hydraulic cylinder is configured on the mold, and the piston of the hydraulic cylinder moves back and forth to achieve lateral parting, core pulling and resetting. The action is relatively stable, the pulling force is large, the core pulling distance is long, and the time sequence of core pulling can be freely set according to needs.

Company Advantage

• We have been dedicated to the manufacturing of Plastic Pipe Fittings Mold for about years, and have become the leading enterprise in the industry. This enables us to introduce and operate a complete set of production equipment, and achieve intelligentization and standardization.
• Our company has built a professional manegement team to provide a strong strength for opening up the market.
• Our company persists in management philosophy of 'guaranteeing quality and quantity, keeping the consistent goal'. For the customer's sake, we sincerely provide them with the best, most convenient and rapid service.
The discounts vary according to jewelry's styles. Feel free to contact Spark Mould for details.
