Product details of the pipe fitting mould
Product Introduction
From design to manufacturing, Spark Mould pipe fitting mould is provided with great attention to the details. Reliable quality and outstanding durability are the competitive advantages of the product. After years of hard work, Spark Mould Technology Co., Ltd.'s pipe fitting mould has been selected by many global brands.
Foldable Core Pulling Mechanism 1
The foldable core is a very representative mold slider mechanism, mainly for the internal thread or annular boss of the plastic part. We designed 9 exquisite parts to combine the foldable core. The contraction and expansion of the slider are achieved through the control of the oil cylinder.

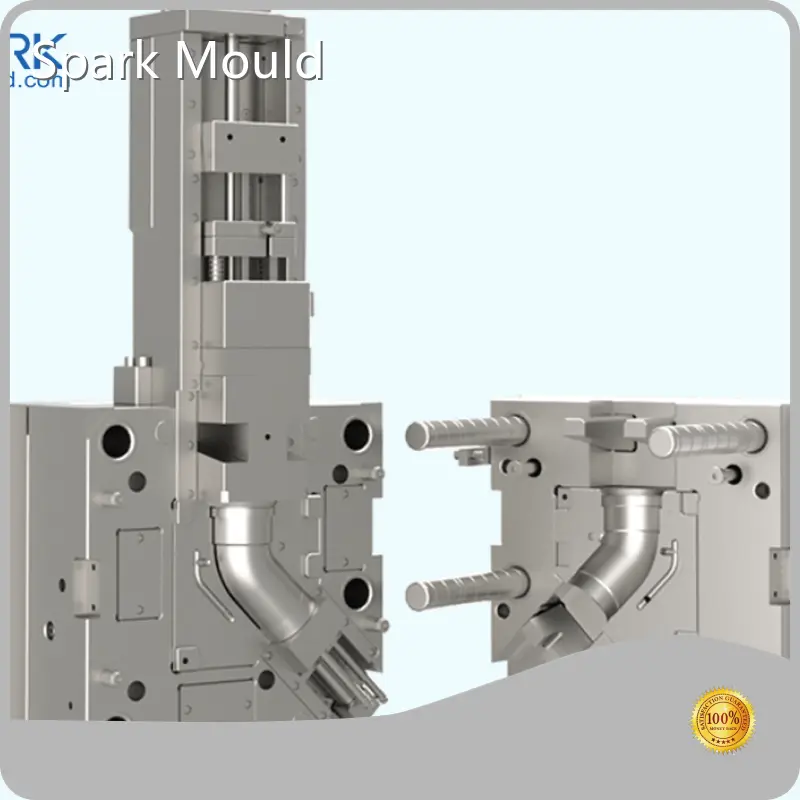

Foldable Core Pulling Mechanism 2

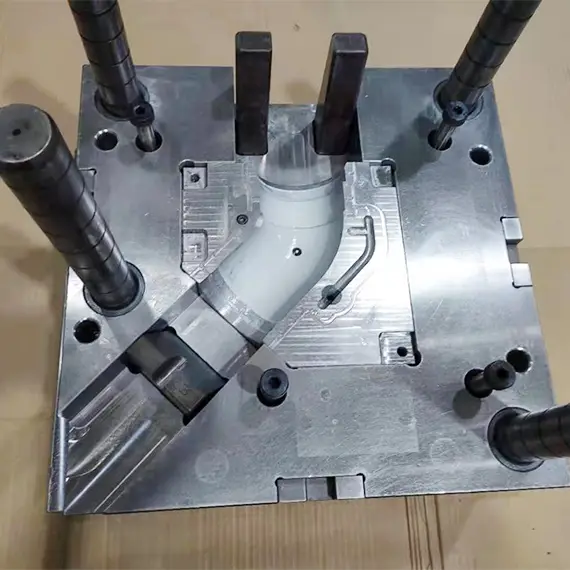

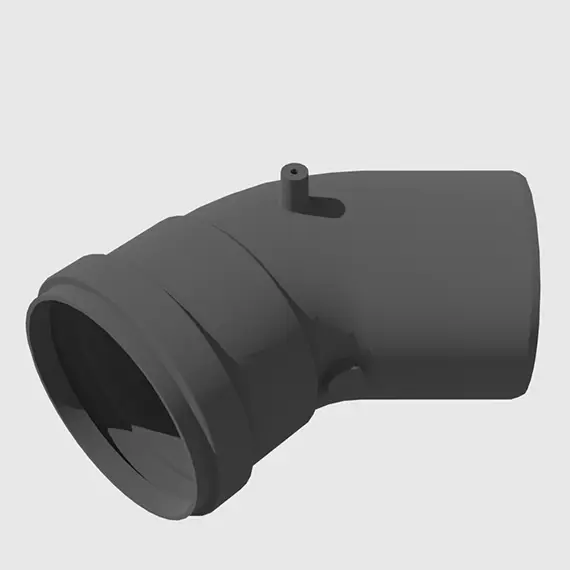

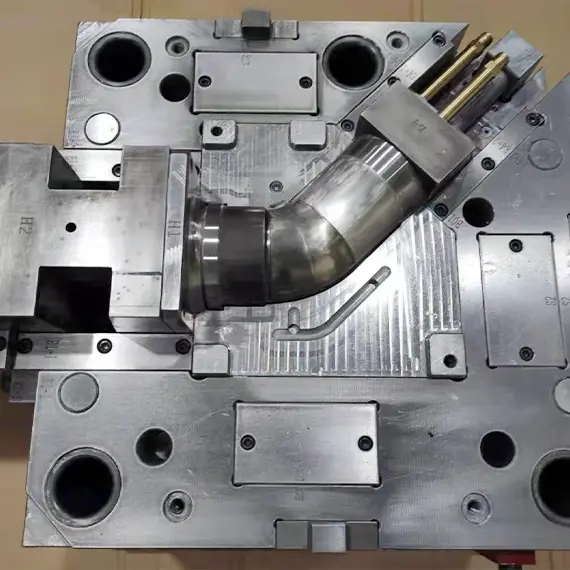

The core-pulling structure of this 45-degree elbow is cleverly designed, consisting of two precise arc blocks and two guide rails. The mechanism is controlled by the oil cylinder, allowing the arc block to move flexibly along the guide rails. The processing accuracy of the arc slider needs to be very high because the inside of the pipe fitting is smooth and curved.
Mold Trial Video
During the product ejection process, the slide at the O ring shrinks first. Then it is separated from the product along with the slide inside the elbow.
Company Advantage
• Spark Mould has established an elite team integrating product research and development and innovation.
• Since the establishment, our sales network has been continuously expanding to where our sales service is highly appraised by customers at home and abroad. In future, we would like to establish our marketing network overseas and expand the business further.
• We have been dedicated to the manufacturing of Plastic Pipe Fittings Mold for about years, and have become the leading enterprise in the industry. This enables us to introduce and operate a complete set of production equipment, and achieve intelligentization and standardization.
• Spark Mould's location has traffic convenience with multiple traffic lines joining up. This contributes to the transportation and ensures the timely supply of products.
Dear customer, if you are interested in Spark Mould's products and would like to know more about the products or services, please leave your contact information. We will contact you as soon as possible.
