Cheapest Fitting Mould with Custom Services for Sale

Inquiry

Product details of the fitting mould


Quick Detail

Strong design attitude and a personality are added to fitting mould. All aspects of the product, such as performance, durability, availability, etc., have been carefully tested and tested during production and before shipment. The fitting mould developed by Spark Mould is widely used in various fields. This product is widely used in the industry and it is deeply trusted by users at home and abroad.


Product Information

Next, the details of fitting mould are shown for you.

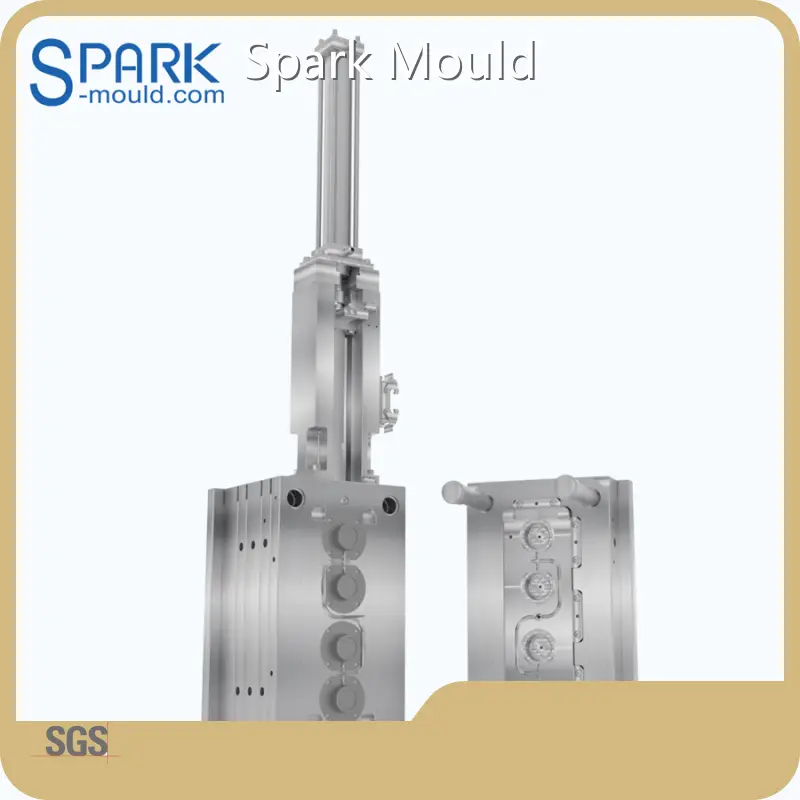

Automatic unscrewing thread mechanism with rack drive

The meshing transmission between the rack and the gear is the core part of this mold. The rack drives the gear to rotate through linear motion, thereby realizing the rotation of the threaded core.

1 inch Nut union fitting mould (1) (2)
1 inch Nut union fitting mould (8)
1 inch Nut union fitting mould (9)

When designing the mold, it is necessary to consider parameters such as transmission ratio, modulus, pressure angle, etc. to ensure the smoothness and accuracy of the transmission.

Mold Design Display

1 inch Nut union fitting mould (11)
1 inch Nut union fitting mould (10)
1 inch Nut union fitting mould (7)

Mold Trial Video

The hydraulic cylinder drives the rack to move linearly. The rack drives the thread core to rotate through the gear meshing with it. At the same time, during the rotation process, the thread core moves axially in the opposite direction of the plastic part thread and gradually separates from the threaded part of the plastic part.

Cheapest Fitting Mould with Custom Services for Sale 12


Company Introduction

Spark Mould Technology Co., Ltd. is a company in dong guan. We integrate scientific research, production, marketing and service and our major product is Plastic Pipe Fittings Mold. Our company has built up a comprehensive after sales service system. We are trying our best to provide timely, convenient and thoughtful consulting and service to answer customers' different doubts. If you are interested, please contact customer service staff for consultation!

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
