Wholesale Pvc Fitting Mould Best Supplier for Industry

Inquiry

Product details of the pvc fitting mould


Quick Detail

pvc fitting mould has the best design that comes from world-class designers. Compared with the same type of product, this pvc fitting mould is more stable and faster. The product has been widely well-known and has gained buyer's recognition in overseas market.


Product Information

Compared with other similar products, our pvc fitting mould has the following advantages.

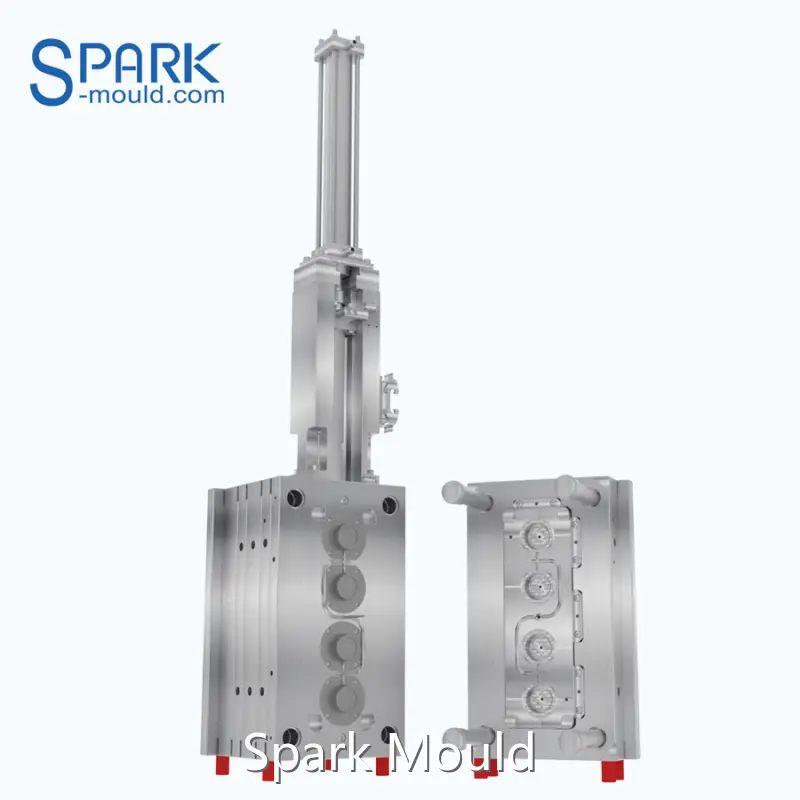

Automatic unscrewing thread mechanism with rack drive

The meshing transmission between the rack and the gear is the core part of this mold. The rack drives the gear to rotate through linear motion, thereby realizing the rotation of the threaded core.

1 inch Nut union fitting mould (1) (2)
1 inch Nut union fitting mould (8)
1 inch Nut union fitting mould (9)

When designing the mold, it is necessary to consider parameters such as transmission ratio, modulus, pressure angle, etc. to ensure the smoothness and accuracy of the transmission.

Mold Design Display

1 inch Nut union fitting mould (11)
1 inch Nut union fitting mould (10)
1 inch Nut union fitting mould (7)

Mold Trial Video

The hydraulic cylinder drives the rack to move linearly. The rack drives the thread core to rotate through the gear meshing with it. At the same time, during the rotation process, the thread core moves axially in the opposite direction of the plastic part thread and gradually separates from the threaded part of the plastic part.

Wholesale Pvc Fitting Mould Best Supplier for Industry 12


Company Introduction

Spark Mould Technology Co., Ltd. is a company that produces Plastic Pipe Fittings Mold. And the location is in dong guan. Constantly sticking to the service principle of 'customers first, service first', Spark Mould has continuously been providing best quality service for customers. If you want to purchase our products in bulk, feel free to contact us.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
