Product details of the pvc fitting mould
Quick Overview
The novel design of pvc fitting mould plays an increasing role owning to homogenization of other products at market. The fully trained and qualified QC team is responsible for the quality of this product. The pvc fitting mould developed by Spark Mould is widely used in various fields. The product is in high demands for its value-added features.
Product Description
Spark Mould's pvc fitting mould has better quality than other products in the industry, which is specifically shown in the following aspects.

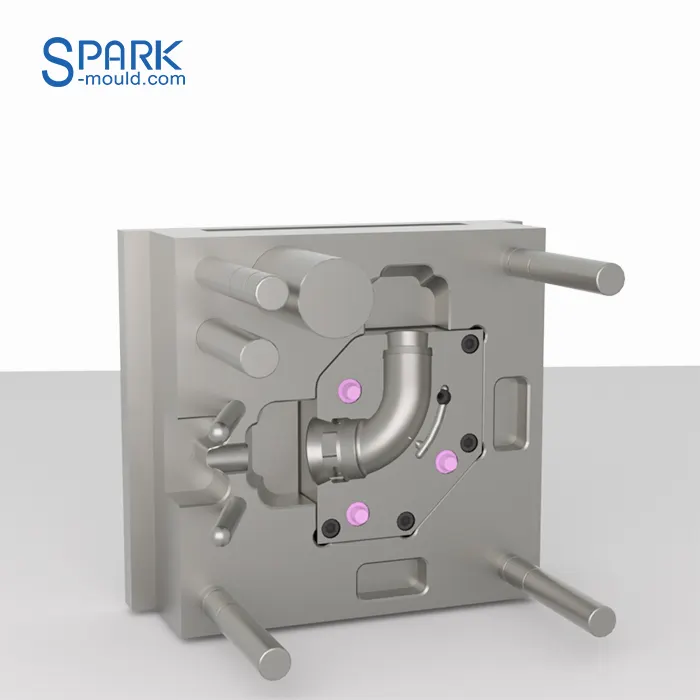

Garden 90 Degree Hose Elbow Mold Structure

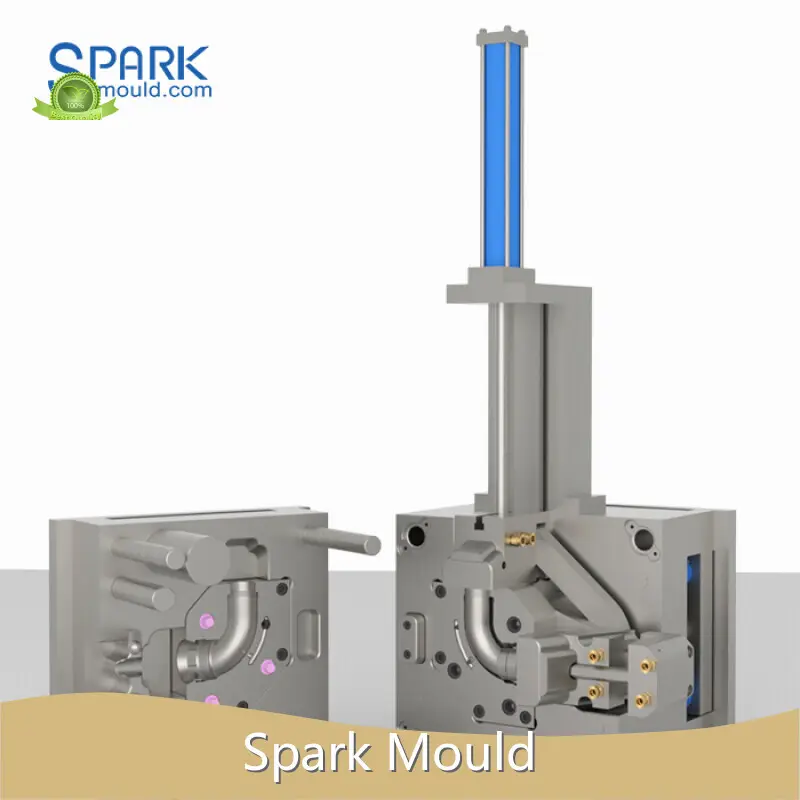

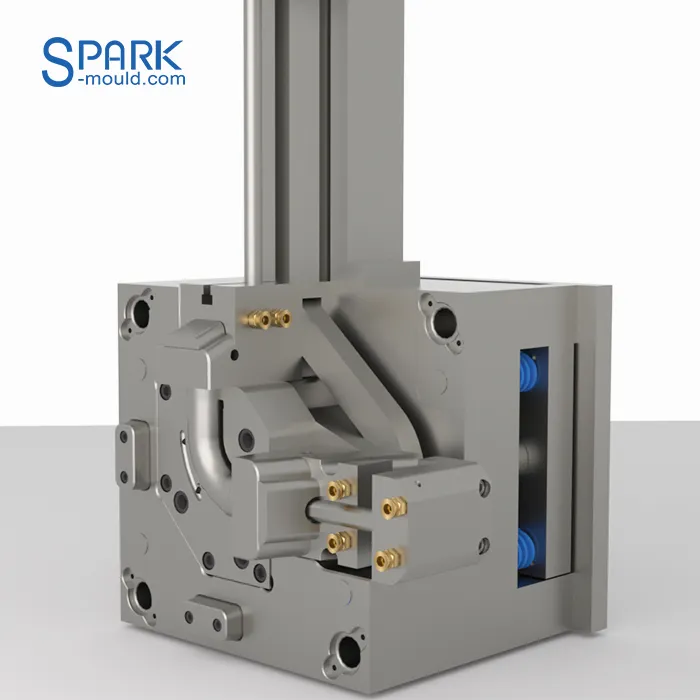

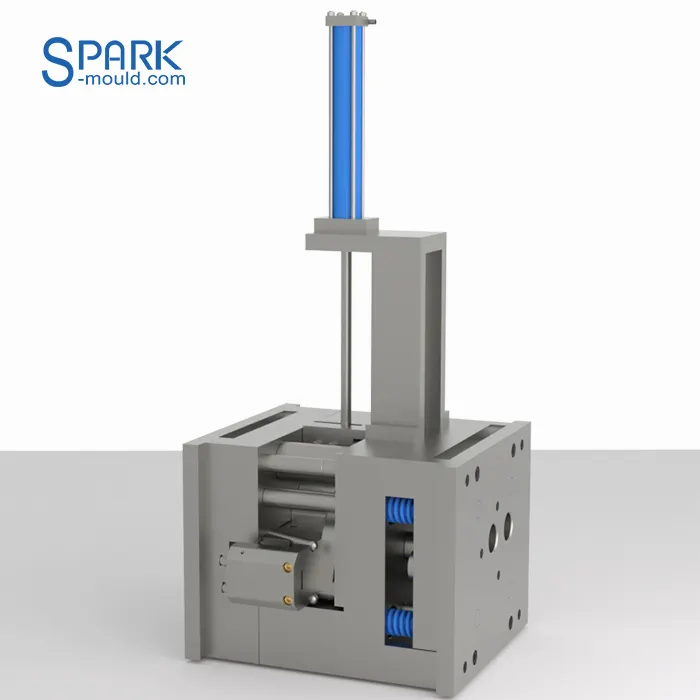

This 90 Degree Hose Elbow Mold mechanism is a variation of the four-bar linkage. The traditional four-bar linkage consists of a crank, a connecting rod, a rocker and a frame. Here, the hydraulic cylinder replaces the rotational motion of the crank and directly inputs the linear motion. The connecting rod connects the hydraulic cylinder and the rocker arm to transmit force and motion. The rocker arm rotates around a fixed axis to convert the linear motion into rotational motion. The mold case is equivalent to the frame, which fixes and supports the entire mechanism.
Garden 90 Degree Hose Elbow Mold Motion Simulation
As shown in the video. The core pulling action of this 90 Degree Hose Elbow Mold is the process of converting linear motion into rotational motion. By converting the linear motion of the hydraulic cylinder into the rotational motion of the rocker arm, it is a kind of motion conversion mechanism. The motion conversion process of the mold mechanism: hydraulic cylinder extension → connecting rod pushes/pull the rocker arm → the rocker arm rotates around the fixed axis.
Key Features of Our 90 Degree Hose Elbow Mold
Unmatched Precision Engineering
Our molds are crafted using advanced CNC technology, ensuring every 90 degree hose elbow produced meets tight tolerances. This eliminates defects like warping or misalignment, critical for maintaining water-tight seals in plumbing systems.
Durable Material for Longevity
Built from high-grade steel or aluminum alloys, these molds resist wear, corrosion, and high temperatures. Ideal for mass production, they deliver consistent results over thousands of cycles, reducing replacement costs.
Versatility in Design
Customizable to fit various hose diameters and materials (PVC, rubber, or polyurethane), the 90 degree hose elbow mold adapts to diverse applications—from residential gardens to agricultural irrigation projects.
Cost-Effective Production
Streamline manufacturing with a mold that minimizes material waste and accelerates cycle times. Achieve higher output without compromising on quality, giving your business a competitive edge.
Key Features of Our 90 Degree Hose Elbow Mold

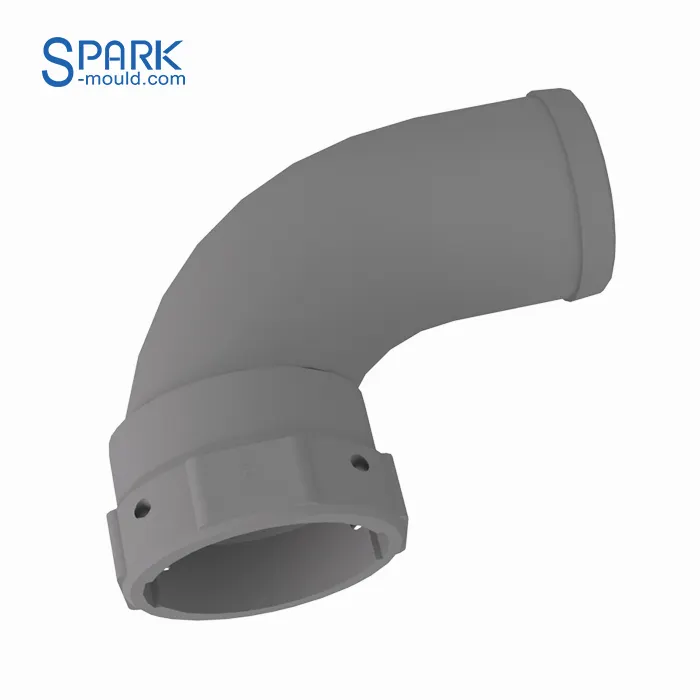

Applications of the 90 Degree Hose Elbow
Garden Irrigation: Connect hoses at right angles for neat, space-saving layouts.
Industrial Plumbing: Ideal for high-pressure systems requiring durable, leak-proof joints.
Automotive & RV: Perfect for custom fluid lines in vehicles and recreational equipment.
DIY Projects: Empower hobbyists to build custom hoses for unique applications.
Conclusion: Elevate Your Production Standards
Upgrade to a precision-engineered 90 degree hose elbow mold and unlock efficiency, durability, and profitability. Perfect for manufacturers prioritizing quality and end-users demanding reliability, this mold is the backbone of modern irrigation and plumbing solutions.
Contact us today for a quote on custom 90 degree hose elbow molds tailored to your needs. Let’s grow your business with tools built to last!
