High Endpvc Pipe Fitting Mold for Sale

Product details of the pvc pipe fitting mold

Quick Overview

Spark Mould pvc pipe fitting mold is crafted by a team of highly skilled technicians. In order to ensure its compliance with industry set quality norms, the product has to be examined by our quality experts before delivery. Overall, a high quality pvc pipe fitting mold always attracts many customers.

Product Description

In order to strengthen your understanding of pvc pipe fitting mold, Spark Mould will show you the specific details of pvc pipe fitting mold in the following section.

Injection Mold Structure

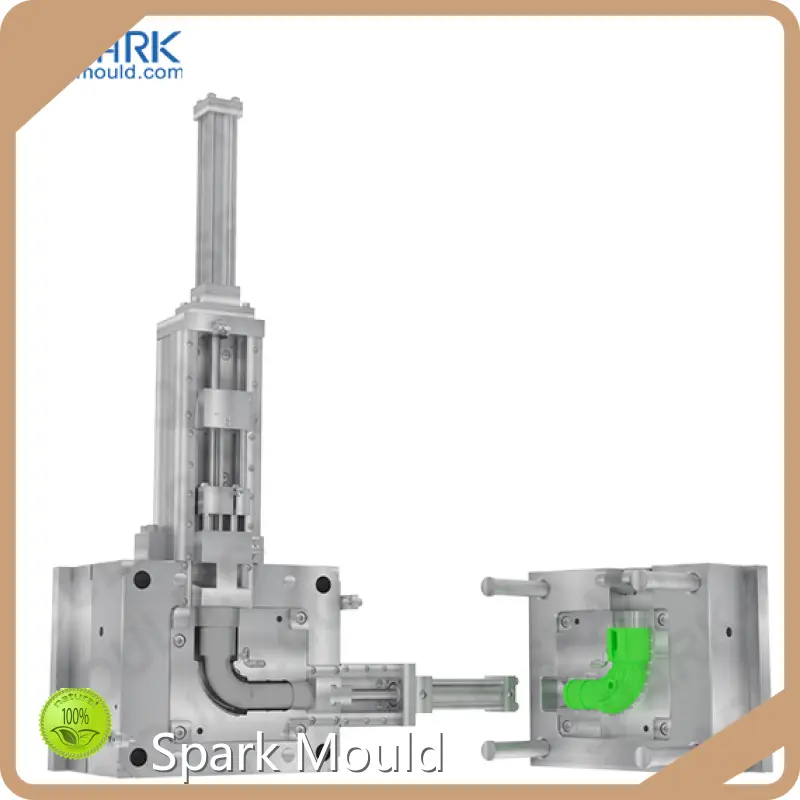

The core of this 90-degree quick connector injection mold is the foldable core mechanism. Its processing and debugging are somewhat difficult. The basic structure of the foldable core is shown in the figure below. The whole mold has two sets of core pulling mechanisms, which are controlled by two hydraulic cylinders respectively.

Hydraulic side core pulling mechanism

Using pressure oil as the power, a special core pulling hydraulic cylinder is configured on the mold, and the piston of the hydraulic cylinder moves back and forth to achieve lateral parting, core pulling and resetting. The action is relatively stable, the pulling force is large, the core pulling distance is long, and the time sequence of core pulling can be freely set according to needs.

Company Advantages

Spark Mould Technology Co., Ltd. is fully committed to pvc pipe fitting mold research and development, production and service. pvc pipe fitting mold is made by the innovative facilities. As a pvc pipe fitting mold provider, our aim is to deliver our high-quality products into the international sector.
We hope to cooperate with you for a win-win situation and jointly create a better future.
