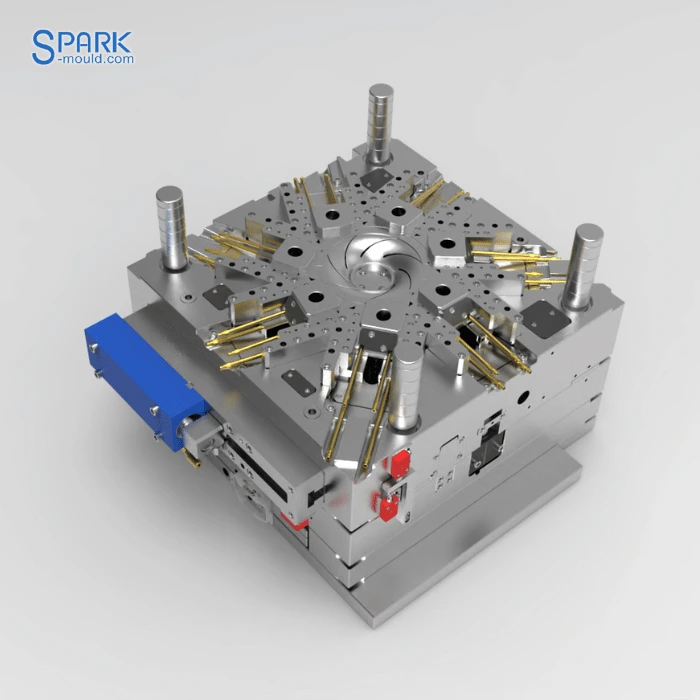

This is a special Fan Wheel Injection mold. Different from other impeller molds, we use linear gear drive in this mold. And combine a special flange (similar to iris mechanism) to control all slider groups. Let the sliders of the blades open and close at the same time. And this set is a hot runner gate, and the mold mechanism is more complicated than other similar products.

    oops...!

    no product data.

    Go to homepage

    Fan Wheel Injection mold Structure

    The core mechanism of this Fan Wheel Injection mold is an iris mechanism controlled by a linear gear. The reciprocating rotation of the transmission flange controls the contraction and separation of all slider groups. The rest of the mechanism is still common. The sliders are layered and open in sequence. However, the two groups of sliders are integrated together and controlled uniformly by the iris mechanism.

    Fan Wheel Injection mold Structure (2).png
    Fan Wheel Injection mold Structure (3).png
    Fan Wheel Injection mold Structure (1).png

    Fan Wheel Injection Mold Dynamic Simulation

    As shown in the video, the movement of the slider of this Fan Wheel Injection mold is similar to that of the iris diaphragm. The linear gear drives the flange and controls the slider group at the same time.

    Why Precision Injection Molding is Critical for Plastic Blower Fan Wheels & Impellers:

    Aerodynamic Integrity: Every blade contour, radial tip angle, and hub detail must be replicated perfectly to maintain designed airflow, pressure, and efficiency. Our molds guarantee geometric accuracy.

    Balance & Low Vibration: Imbalanced impellers cause noise, wear, and failure. Our injection molds incorporate sophisticated gating and cooling systems to ensure uniform material distribution and minimize part warpage for smooth operation.

    Material Performance: Whether molding glass-filled PP for rigidity, heat-resistant PA66, or chemical-resistant polymers, our molds are engineered for optimal fill, packing, and crystallization of your chosen plastic.

    High-Volume Durability: Built with hardened tool steels (e.g., H13, Stainless) and precision components, our fan wheel injection molds withstand the rigors of high-volume production, maximizing uptime and ROI.

    Our Expertise in Blower Plastic Radial Tip Fan Wheel Injection Molds:

    Complex Geometry Mastery: From intricate multi-blade impeller designs to complex hub features, our advanced CNC machining, EDM, and polishing capabilities capture every detail.

    Optimized Mold Flow: Advanced simulation guides gate placement, runner design, and cooling channel layout to prevent weld lines, sinks, or air traps in the delicate fan wheel structure.

    Efficient Ejection: Customized ejection systems ensure distortion-free removal of the often-fragile plastic impeller blades and hub.

    Surface Finish Excellence: Critical airflow surfaces are polished to exacting standards (SPI A-1, A-2) to minimize drag and maximize performance.

    Benefits of Partnering with Us for Your Fan Wheel & Impeller Molds:

    Superior Part Quality: Achieve consistent, dimensionally accurate plastic fan wheels and impellers with optimal mechanical properties.

    Reduced Cycle Times: Efficient cooling systems designed into the mold maximize productivit

    Extended Mold Life: Robust construction and premium materials ensure longevity, reducing tooling costs per part.

    Design for Manufacturability (DFM): We collaborate early to optimize your blower wheel or impeller design for cost-effective, high-yield molding.

    Total Solution Provider: From initial concept through mold qualification and production support.

    Ideal for Applications Requiring: High-Efficiency Blowers, HVAC Systems, Automotive Ventilation, Appliance Motors, Industrial Air Handling, Cooling Fans.

    Unlock peak performance, reliability, and efficiency for your plastic radial tip blower wheels and impellers. Contact Spark Mould today for a consultation on your next fan wheel injection mold project!
