Plastic Centrifugal Compressor Air Pump Impeller Mould

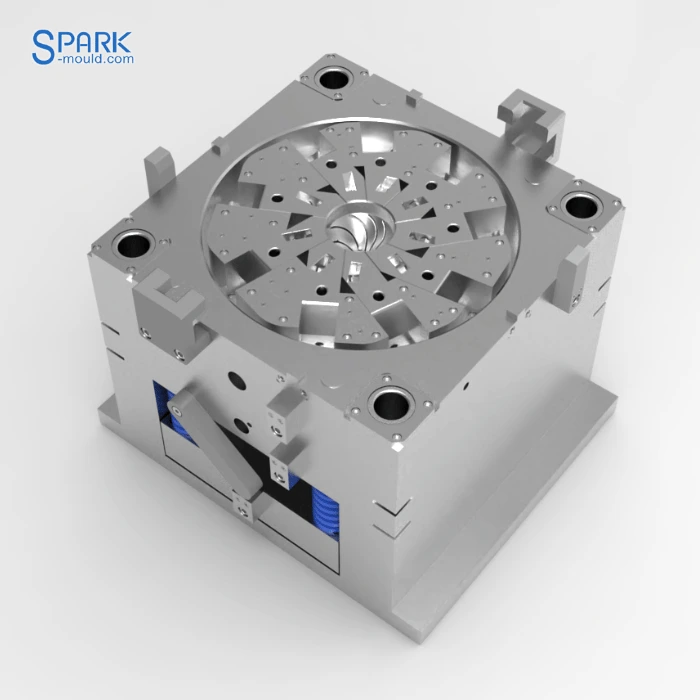

Plastic pump impeller Mold Structure
This pump impeller mold structure has several highlights. 1. Release the hole slider on the blade first through the delay mechanism. 2. When the product is forced to be ejected, the cavity will rotate accordingly to release the stress. 3. When resetting, the ejector mechanism will reset the rotated cavity first, and then reset the slider.
Plastic pump impeller Mold Dynamic Simulation
As shown in the video. When the mold is opened, the A-B plates are not separated for the time being. First, the hole slider on the blade is released. Then the AB plates are separated. Because of the inclined guide column, the slider is separated. Finally, the product is ejected, and the cavity will rotate accordingly to release the stress and space.
Unlock Superior Airflow Efficiency with High-Precision Pump Impeller Molds
In the demanding world of air compression and fluid dynamics, the pump impeller stands as the beating heart of your centrifugal system. When it comes to plastic centrifugal compressor air pumps, achieving optimal efficiency, durability, and consistent output hinges on one critical component: the pump impeller mold. At Spark Mould, we specialize in designing and manufacturing advanced compressor impeller mold solutions that transform engineering specifications into high-performance plastic realities.
Why Precision Impeller Molds Matter
Every high-speed rotation of your compressor impeller impacts system efficiency. Imperfections in blade geometry, surface finish, or balance directly cause energy loss, noise, and premature wear. Our pump impeller mold technology ensures:
Aerodynamic Accuracy: Complex blade curvatures and exact hydraulic profiles are faithfully replicated, optimizing airflow and pressure generation.
Material Integrity: Advanced cooling channels prevent warping and internal stresses in plastics like PPS, PEEK, or reinforced nylons.
Micro-Precision: Tolerances as low as ±0.01mm guarantee consistent impeller balance and performance batch after batch.
Extended Mold Life: Hardened tool steels (e.g., H13, Stainless) and specialized coatings combat abrasive composites and corrosive environments.
Core Mold Technologies for Superior Pump Impellers
Our compressor impeller mold designs integrate critical manufacturing expertise:
Multi-Axis CNC & EDM Machining: Creates intricate 3D blade geometries and smooth surface finishes critical for aerodynamic efficiency.
Conformal Cooling: 3D-printed or drilled channels follow the impeller contour, slashing cycle times and eliminating hotspots for dimensionally stable parts.
Vacuum Venting: Ensures complete cavity fill in thin-walled, complex blade sections, eliminating air traps and burns.
Modular Design: Enables efficient core/cavity replacement for maintenance or design iterations, minimizing downtime.
Spark mould is your trusted partner for mission-critical compressor impeller mold and pump impeller mold solutions. We combine cutting-edge engineering, rigorous quality control, and deep material science knowledge to mold the impellers that drive your success.
