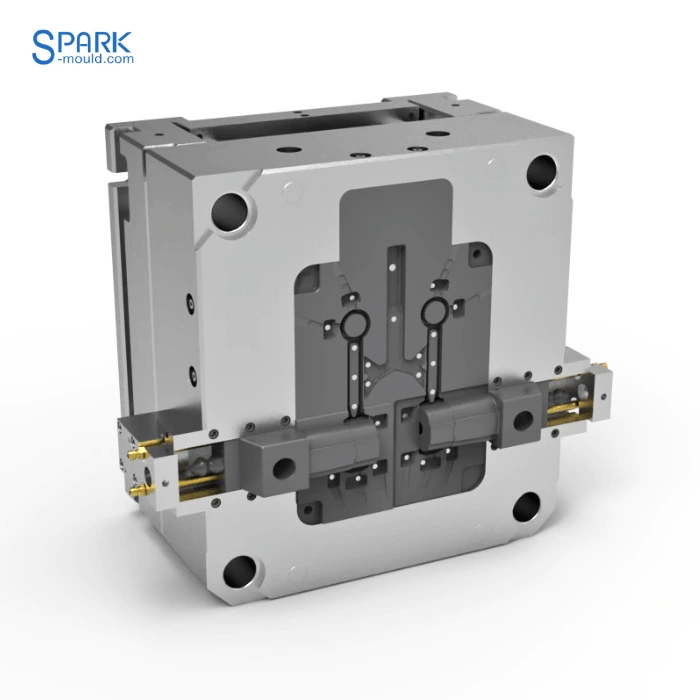

Aluminum Alloy Connecting Rod Die Casting Mold

For aluminum connecting rods, which demand exceptional dimensional accuracy, consistent material properties, and flawless surface integrity to withstand intense cyclical loads, the mold's design and construction are paramount. This specialized aluminum die cast mold must deliver:

Connecting rods feature intricate shapes with thin walls, precise bearing bores, and critical beam sections. The die casting mold must accurately form these features, often requiring complex core slides and actions, maintaining tolerances within hundredths of a millimeter.

Molten aluminum (typically A380, A383, or high-silicon variants) is injected at high speeds (400-1000+ ft/sec) and pressures (thousands of psi). The aluminum die cast mold faces extreme thermal cycling, abrasive wear, and corrosive attack. Premium tool steels (like H13, often hardened to 46-50 HRC and vacuum heat-treated) with specialized surface treatments (nitriding, PVD coatings like CrN or AlCrN) are essential for longevity, resisting erosion, soldering, and heat checking.Molten aluminum (typically A380, A383, or high-silicon variants) is injected at high speeds (400-1000+ ft/sec) and pressures (thousands of psi). The aluminum die cast mold faces extreme thermal cycling, abrasive wear, and corrosive attack. Premium tool steels (like H13, often hardened to 46-50 HRC and vacuum heat-treated) with specialized surface treatments (nitriding, PVD coatings like CrN or AlCrN) are essential for longevity, resisting erosion, soldering, and heat checking.

Precise control of mold temperature is critical. Uneven cooling leads to warpage, internal porosity, and surface defects. An efficient cooling channel system within the aluminum die cast mold ensures rapid, uniform solidification, maximizing part strength and minimizing cycle times.

Trapped air or gases during injection cause porosity – a fatal flaw in highly stressed connecting rods. Strategically placed vents, often coupled with advanced techniques like vacuum-assisted aluminum die casting, are meticulously designed into the mold to evacuate air, ensuring dense, sound castings.

The fragile, complex shape of the solidified rod demands a perfectly synchronized ejection system. Strategically placed pins and plates within the die casting mold must release the part cleanly without distortion or surface damage.

While the die casting mold is fundamental, producing a reliable aluminum connecting rod requires a holistic approach:

Advanced Process Control: Precise regulation of melt temperature, injection speeds/pressures (multi-stage profiles), intensification pressure, and die temperature.

Vacuum Assistance: Widely adopted to drastically reduce entrapped air porosity, enhancing fatigue strength – often a requirement for performance rods.

Stringent Quality Assurance: Comprehensive checks including X-ray inspection for internal porosity, CT scanning, dimensional verification, mechanical testing (tensile, fatigue), and metallographic analysis.

The aluminum alloy connecting rod die casting mold is a masterpiece of precision engineering, enabling the mass production of the lightweight, high-strength rods essential for modern, efficient engines. Its complex design, demanding material requirements, and critical role in thermal management and venting directly dictate the final part's quality, performance, and longevity. As engine technology evolves, continuous advancements in aluminum die casting processes and aluminum die cast mold technology will remain pivotal in pushing the boundaries of power, efficiency, and reliability.

Ready to explore how precision-engineered aluminum die cast molds can elevate your connecting rod production? Contact us today to discuss your high-performance component needs.
