How Maintenance Practices Extend the Lifespan of High Pressure Die Casting Molds

High-pressure die casting is a critical process in the manufacturing of parts across various industries, from automotive to aerospace. High pressure die casting molds play a pivotal role in this process, ensuring the creation of precise and durable parts. However, maintaining these molds is essential to their longevity and effectiveness. Regular maintenance practices not only extend the lifespan of the molds but also improve the efficiency and quality of the parts produced. In this article, we will explore the importance of high-pressure die casting molds, common issues that arise, and effective maintenance practices to ensure optimal performance.

Importance of High Pressure Die Casting Molds

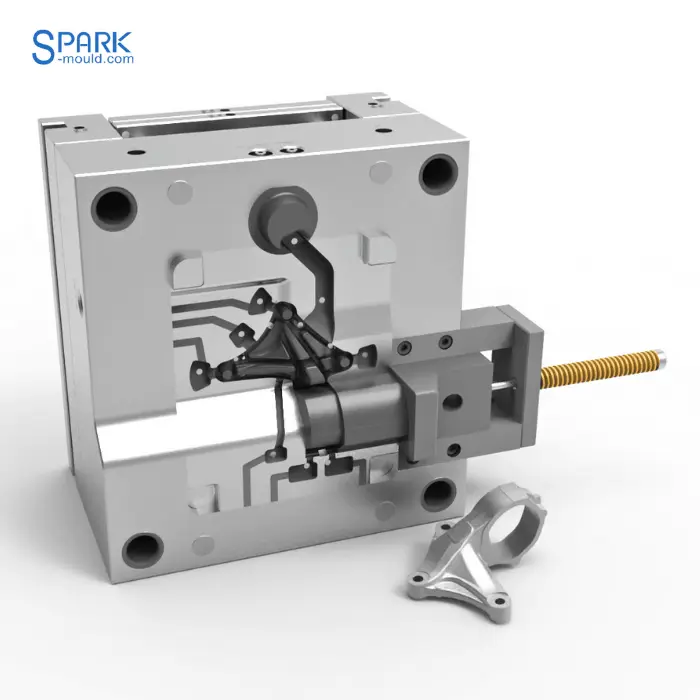

High-pressure die casting is a rapid manufacturing process that involves injecting molten metal into a mold cavity under high pressure to create complex shapes. The molds used in this process are designed to withstand extreme temperatures and pressures, ensuring the formation of parts with precise dimensions and excellent surface finish. These molds are typically made of steel or aluminum and are precision-engineered to meet specific requirements of the manufacturing process.

Overview of High-Pressure Die Casting

High-pressure die casting is a metal-forming process that has gained significant popularity due to its ability to produce parts with high precision and repeatability. The process involves the following steps:

1. Preparation:
2. The mold is heated to the desired temperature to ensure it is ready to receive the molten metal.

3. The mold cavity is lubricated to facilitate the release of the cast part.

4. Injection:

5. Molten metal is injected into the mold cavity under high pressure, typically ranging from 35 to 200 MPa.

6. The metal fills the mold cavity and solidifies rapidly due to the high pressure and cooling from the mold.

7. Cooling:



8. The mold is cooled to allow the metal to solidify completely.
9. Once solidified, the part can be safely removed from the mold.

Advantages of High-Pressure Die Casting

• Precision and Accuracy:
• The high pressure ensures that the molten metal fills all parts of the mold cavity, resulting in parts with precise dimensions and smooth surface finish.
• Efficiency:
• The rapid cycle time and automation capabilities of the process make it highly efficient.
• Complexity:
• High-pressure die casting can produce parts with complex geometries, making it suitable for a wide range of applications.

Common Issues in High Pressure Die Casting Molds

Issues and Their Effects

Causes of Common Issues

• Corrosion:
• Can be caused by prolonged exposure to corrosive environments or inadequate cooling.
• Thermal Stresses:
• Occurs due to rapid temperature changes during the cooling process.
• Wear and Tear:
• Caused by repeated use and insufficient lubrication.
• Contamination:
• Introduced through improper handling of materials or equipment.
• Misalignment:
• Results from improper clamping or incorrect setup of the mold.

Regular Maintenance Practices

Proactive maintenance is essential to ensure the longevity and efficiency of high-pressure die casting molds. Regular inspection, cleaning, lubrication, and repair can significantly extend the mold's lifespan and maintain optimal performance.

Inspection

Cleaning

Cleaning the molds is crucial to remove any residues or contaminants that can affect the quality of the cast parts. Regular cleaning can prevent build-up of materials and ensure consistent part formation. Cleaning should be done according to the manufacturer's recommendations, often involving mechanical brushing, chemical cleaning agents, or ultrasonic cleaning.

Lubrication

Lubrication helps reduce friction and wear on the mold components. It is essential to follow the manufacturer's guidelines for lubrication frequency and type of lubricant. Proper lubrication also helps in the easy release of parts from the mold cavity.

Repair and Replacement

Documentation

Maintaining detailed records of maintenance activities, including inspection findings, cleaning, lubrication, and repairs, is crucial. This documentation can help track the condition of the molds over time and serve as a reference for future maintenance activities.

Advantages of Good Maintenance Practices

Implementing a consistent maintenance routine offers numerous advantages, not just in terms of mold lifespan but also in overall manufacturing efficiency and quality.

Increased Lifespan

Proper maintenance can significantly extend the lifespan of high-pressure die casting molds. Regular inspection and repair can prevent minor issues from escalating into more severe problems, ultimately saving time and resources on replacement and downtime.

Improved Efficiency

Maintained molds operate more efficiently, reducing the likelihood of part rejections and improving the overall productivity of the casting process. Efficient molds can also help in achieving higher production rates and better quality production runs.

Enhanced Part Quality

Regular maintenance ensures that molds are in optimal condition, resulting in parts with consistent quality and specifications. This consistency is crucial in industries where part precision is critical.

Tips for Effective Maintenance

Achieving effective maintenance requires a combination of thorough practices and best practices that can be implemented by any maintenance team. Here are some practical tips to enhance the efficiency and effectiveness of maintenance activities.

Best Practices for High-Pressure Die Casting Molds

1. Follow Manufacturer Guidelines:
2. Adhere to the manufacturer's recommendations for cleaning, lubrication, and repair schedules.

3. Utilize the recommended tools and materials to ensure consistency and reliability.

4. Regular Inspection:

5. Conduct regular inspections to identify any signs of damage or wear.

6. Use proper inspection techniques, such as visual inspection and non-destructive testing (NDT) methods like ultrasonic testing.

7. Lubrication Routine:

8. Apply lubricants according to the recommended schedules and types.

9. Ensure that all moving parts are adequately lubricated to prevent wear and tear.

10. Cleaning Protocols:

11. Implement a consistent cleaning schedule to remove residues and contaminants.

12. Use approved cleaning agents that are compatible with the mold materials and surface finishes.

13. Record Keeping:

14. Maintain detailed records of all maintenance activities, including dates, types of maintenance performed, and any issues identified.

15. Utilize digital tools or spreadsheets to keep track of maintenance logs and service histories.

16. Training and Education:



17. Ensure that maintenance personnel are trained and knowledgeable about the specific requirements of high-pressure die casting molds.
18. Provide ongoing training to keep employees updated on new maintenance techniques and technologies.

Specific Maintenance Tips

• Preventive Maintenance:

• Monitoring and Analysis:

• Use monitoring tools and data analysis to track the performance of the molds and identify trends in maintenance needs.

• Analyze data to identify areas where maintenance can be optimized and where improvements can be made.

• Quality Control:



• Incorporate quality control measures into the maintenance routine to ensure that all parts are functioning correctly.
• Conduct regular audits to verify that maintenance activities are being performed according to established procedures.

Conclusion

High-pressure die casting molds are critical components in the manufacturing process, and their maintenance is essential for ensuring optimal performance and longevity. Regular inspection, cleaning, lubrication, and repair can significantly extend the lifespan of these molds, leading to improved efficiency, consistency, and quality in the production of cast parts. By implementing the recommended maintenance practices and best practices, manufacturers can maximize the benefits of their high-pressure die casting operations.

Final Thoughts

Investing in a robust maintenance program not only saves costs in the long run but also enhances the overall performance of high-pressure die casting molds. Spark Mould is committed to providing top-quality molds that are designed to withstand the rigors of manufacturing processes while ensuring consistent and high-quality output. For more information on high-pressure die casting molds and maintenance practices, visit our website.
